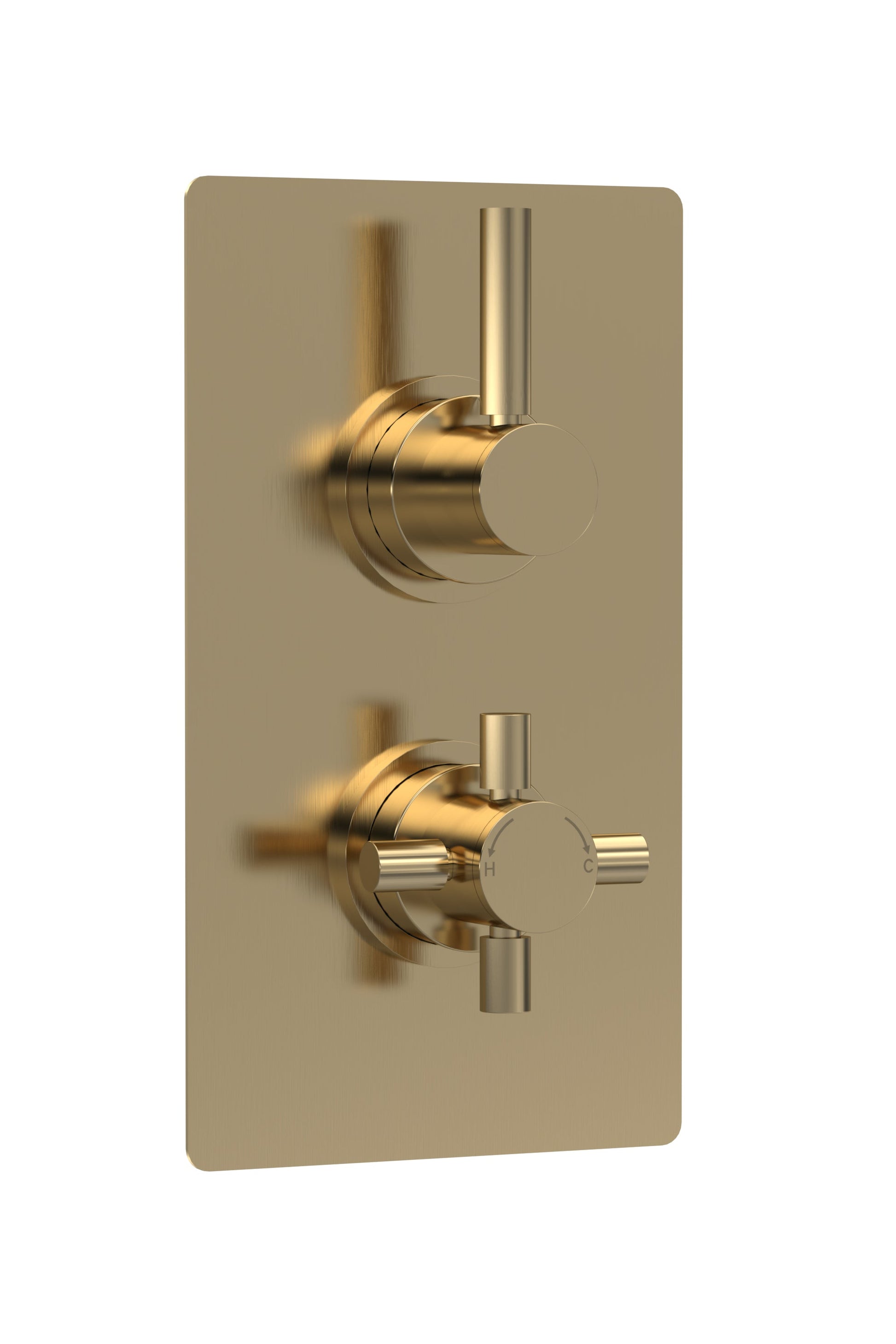

Tec Pura Twin Thermostatic Shower Valve Brushed Brass

Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates. In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.

Specifications

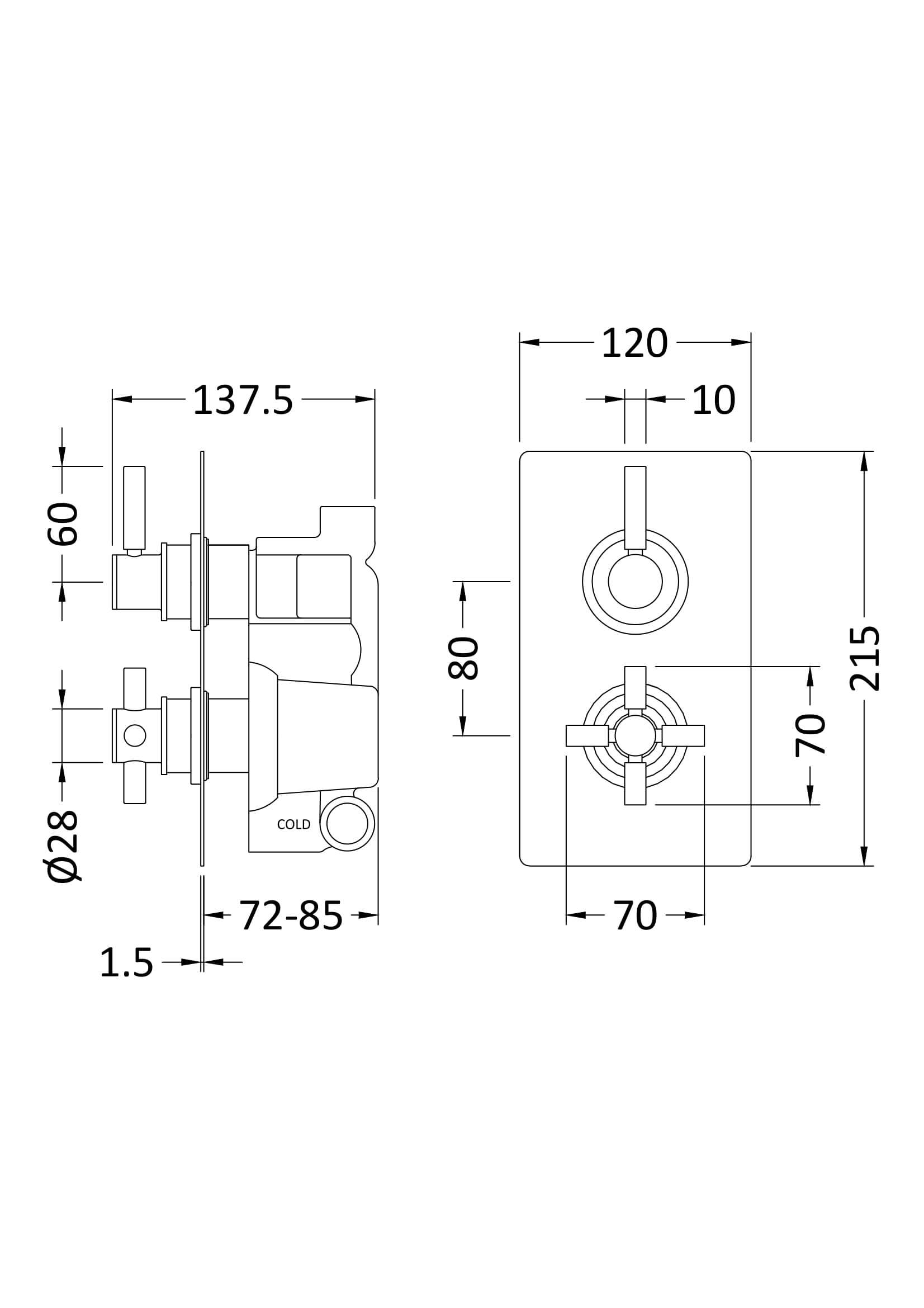

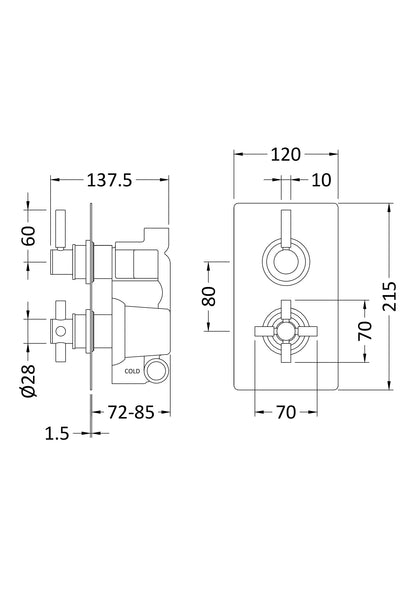

• Dimensions (H × W × D): 215 × 120 × 137 mm
• Range: Tec Pura
• Style: Contemporary
• Material: Brass Abs
• Colour/Finish: Brushed Brass
• Guarantee: 3 Years
• Country of Manufacture: China
• Weight: 4.14 kg
• Mount Type: Recessed/Wall
• Handle Type: Crosshead/Lever
• Minimum Operating Pressure: 0.1 Bar
• Valve/Cartridge Type: 1/4 Turn
• WRAS Approved: Yes
• WRAS Approval Number: 250602040
• TMV2 Approved: No
• TMV3 Approved: No
• Flow Rate at 0.1 Bar: 5.5 L/min
• Flow Rate at 0.5 Bar: 14 L/min
• Flow Rate at 1 Bar: 20 L/min
• Flow Rate at 2 Bar: 29 L/min
• Flow Rate at 3 Bar: 44 L/min

Delivery

• Dispatch type: Standard Parcel
• Packaged weight: 4.14 kg
• Packaged size (L × W × H): 250 × 240 × 110 mm
