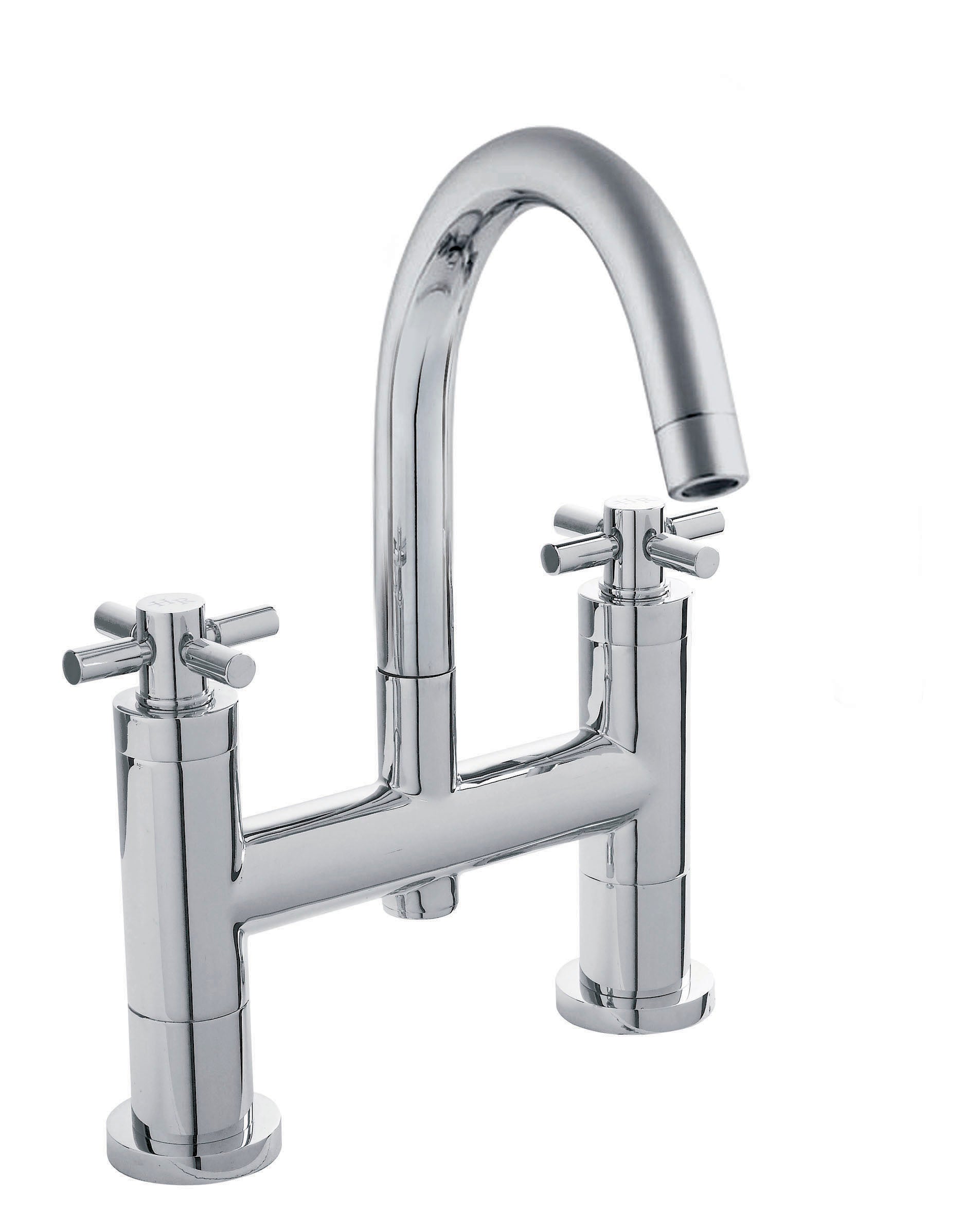

Tec Crosshead Bath Filler

Timeless symmetry with crosshead . Swivel spout. Ceramic disc technology for long life and smooth operation. High quality brass internals with luxury chrome finish. WRAS approved.

Specifications

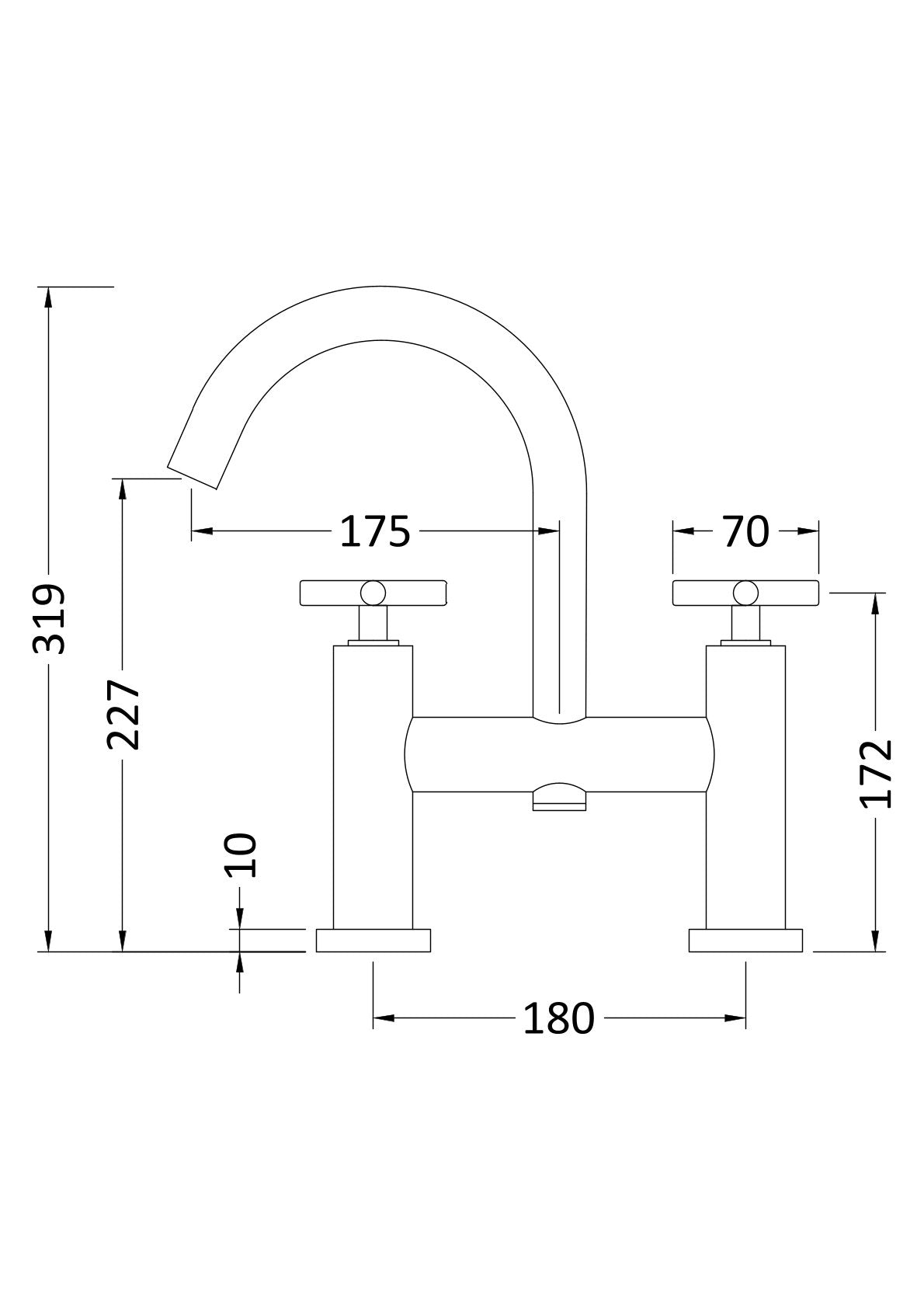

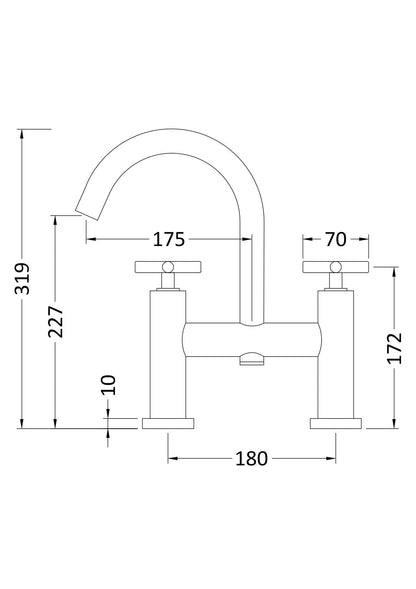

• Dimensions (H × W × D): 319 × 230 × 50 mm
• Range: Tec Crosshead
• Style: Contemporary
• Material: Brass
• Colour/Finish: Chrome
• Guarantee: 20 Years
• Country of Manufacture: United Kingdom
• Weight: 3.1 kg
• Waste Included: No
• Mount Type: Deck
• Handle Type: Crosshead
• Minimum Operating Pressure: 0.2 Bar
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• WRAS Approved: Yes
• WRAS Approval Number: 2204060
• TMV2 Approved: No
• TMV3 Approved: No
• Flow Rate at 0.1 Bar: 8 L/min
• Flow Rate at 0.5 Bar: 29 L/min
• Flow Rate at 1 Bar: 40 L/min
• Flow Rate at 2 Bar: 48 L/min
• Tap Holes Required: 2
• Tap Spout Projection: 115 mm
• Pipe Centres: 180 mm

Delivery

• Dispatch type: Standard Parcel
• Packaged weight: 3.1 kg
• Packaged size (L × W × H): 265 × 235 × 100 mm
