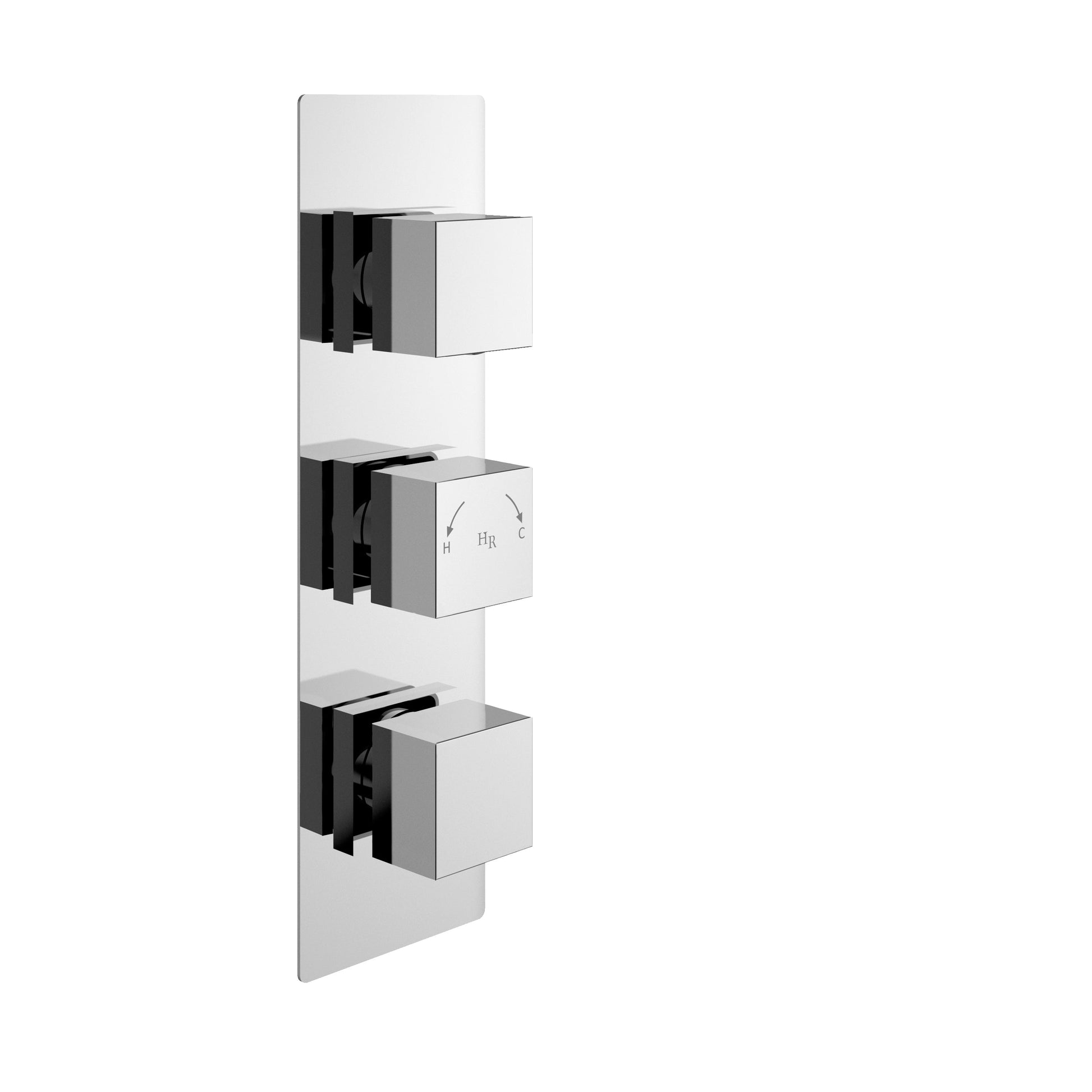

Square Valves Triple Valve with Diverter

Contemporary design with modern chrome finish. Accurate flow control. High quality internal brassware for long life. Full thermal protection to prevent scalding in the event of hot or cold water shut off. Fully reversible cartridge meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.

Specifications

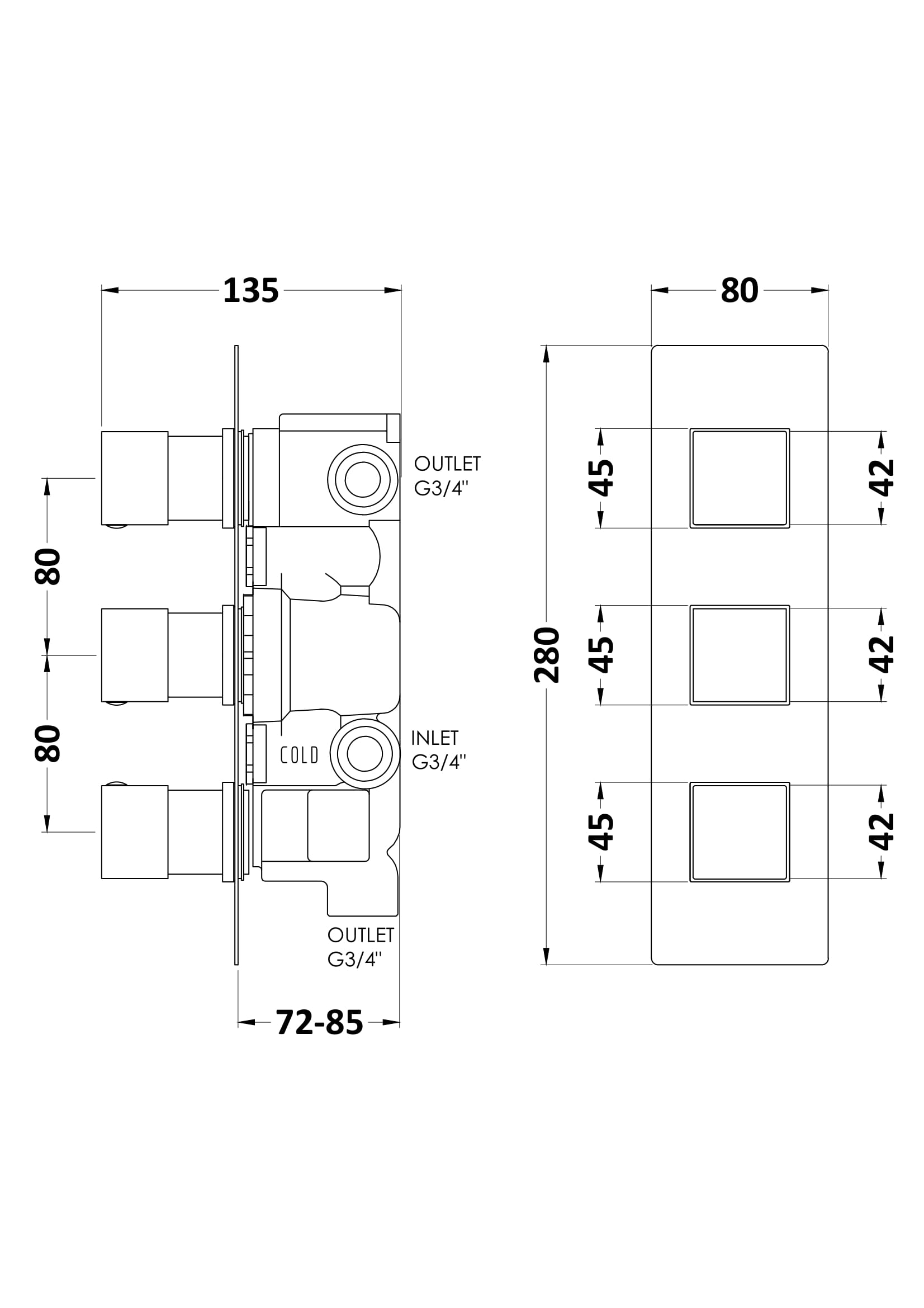

• Dimensions (H × W × D): 280 × 95 × 136 mm
• Range: 3 Outlet Valves
• Style: Contemporary
• Material: Brass Abs
• Colour/Finish: Chrome
• Guarantee: 20 Years
• Country of Manufacture: United Kingdom
• Weight: 3.5 kg
• Mount Type: Wall Hung
• Handle Type: Square
• Minimum Operating Pressure: 0.5 Bar
• Valve/Cartridge Type: 1/4 Turn
• WRAS Approved: Yes
• WRAS Approval Number: 250602040
• TMV2 Approved: No
• TMV3 Approved: No
• Flow Rate at 0.5 Bar: 13 L/min
• Flow Rate at 1 Bar: 17 L/min
• Flow Rate at 2 Bar: 24 L/min
• Flow Rate at 3 Bar: 27 L/min
• Pipe Centres: 125 mm

Delivery

• Dispatch type: Standard Parcel
• Packaged weight: 3.5 kg
• Packaged size (L × W × H): 250 × 240 × 130 mm
