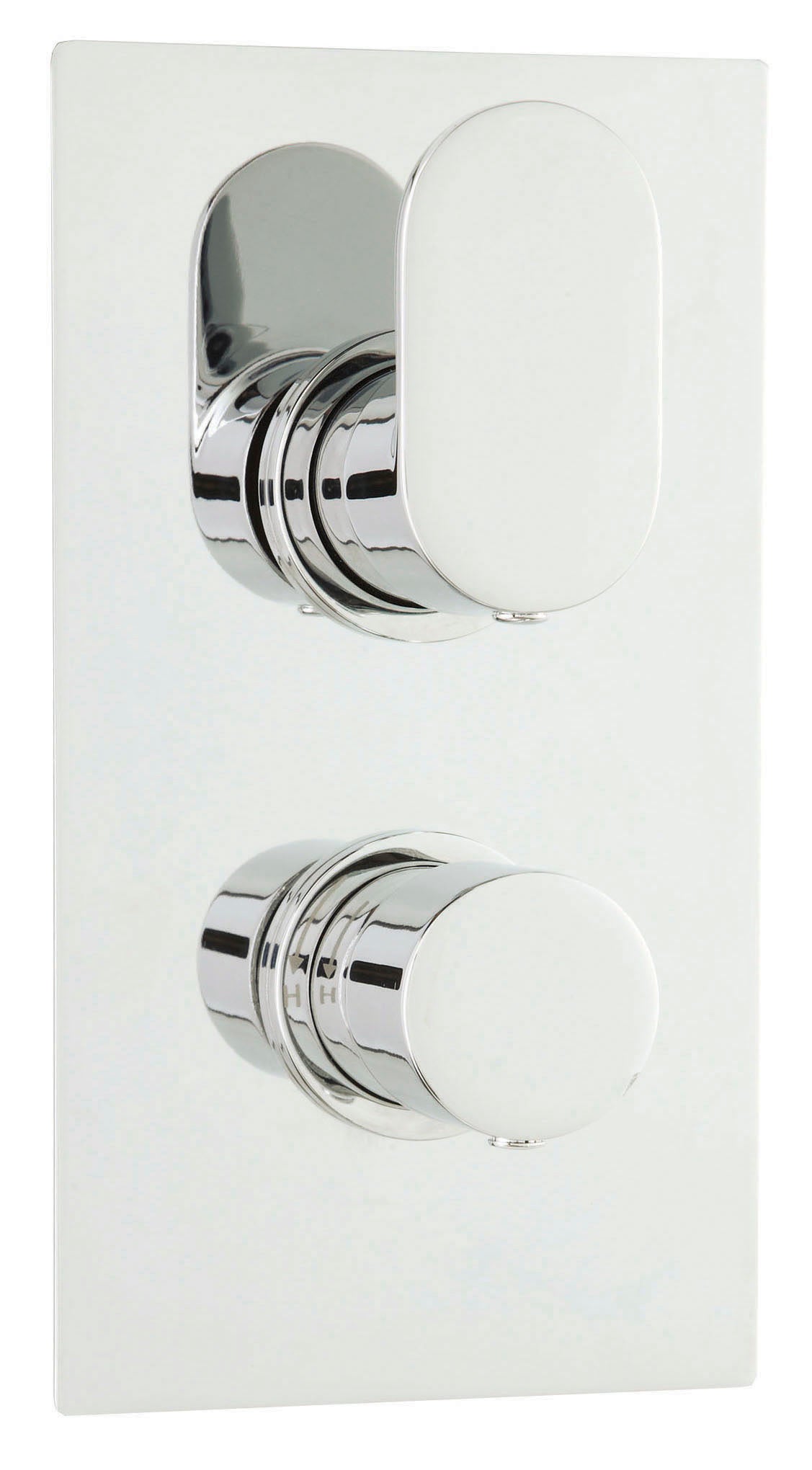

Reign Twin Valve With Diverter

Minimalist sleek design. Can be fitted vertically or horizontally. Accurate flow control. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. Full thermal protection to prevent scalding in the event of hot or cold water shut off. In the event of hot or cold water failure the valve will shut down as per the relevant standard. The unique cartridge is highly resistant to calcium build up - even in hard water areas. Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers. Excellent flow rates - even at low pressure. The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing. Simply remove the cartridge turn 180° and replace. Manufactured from high quality brass & ABS.

Specifications

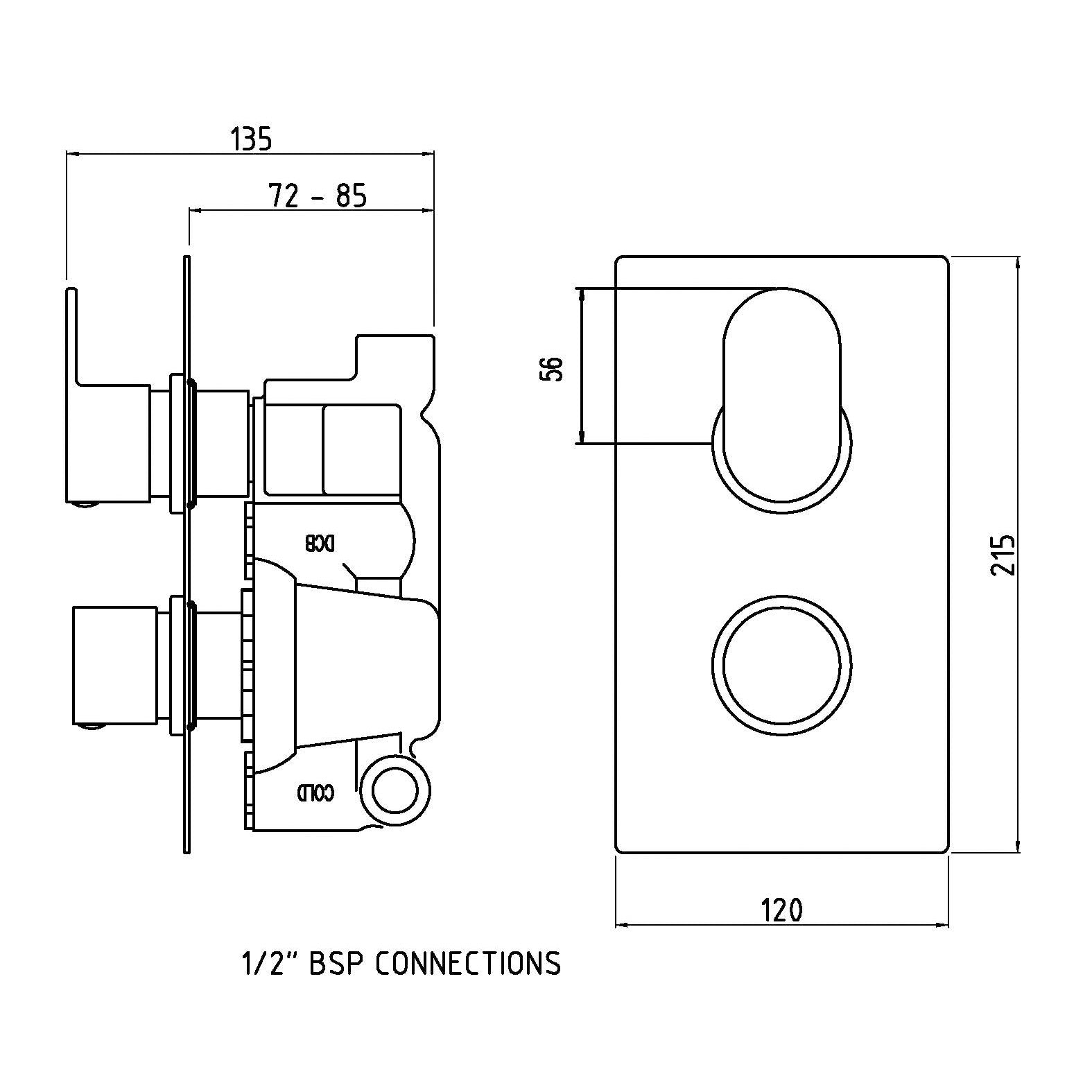

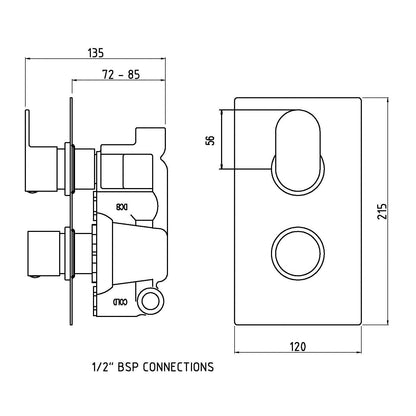

• Dimensions (H × W × D): 215 × 120 × 135 mm
• Range: 2 Outlet Valves
• Style: Contemporary
• Material: Brass Abs
• Colour/Finish: Chrome
• Guarantee: 20 Years
• Country of Manufacture: United Kingdom
• Weight: 2.9 kg
• Mount Type: Wall Hung
• Handle Type: Lever/Round
• Minimum Operating Pressure: 0.5 Bar
• Valve/Cartridge Type: 1/4 Turn
• WRAS Approved: Yes
• WRAS Approval Number: 250602040
• TMV2 Approved: No
• TMV3 Approved: No
• Flow Rate at 0.5 Bar: 13 L/min
• Flow Rate at 1 Bar: 17 L/min
• Flow Rate at 2 Bar: 24 L/min
• Flow Rate at 3 Bar: 27 L/min
• Pipe Centres: 125 mm

Delivery

• Dispatch type: Standard Parcel
• Packaged weight: 2.9 kg
• Packaged size (L × W × H): 250 × 240 × 130 mm
