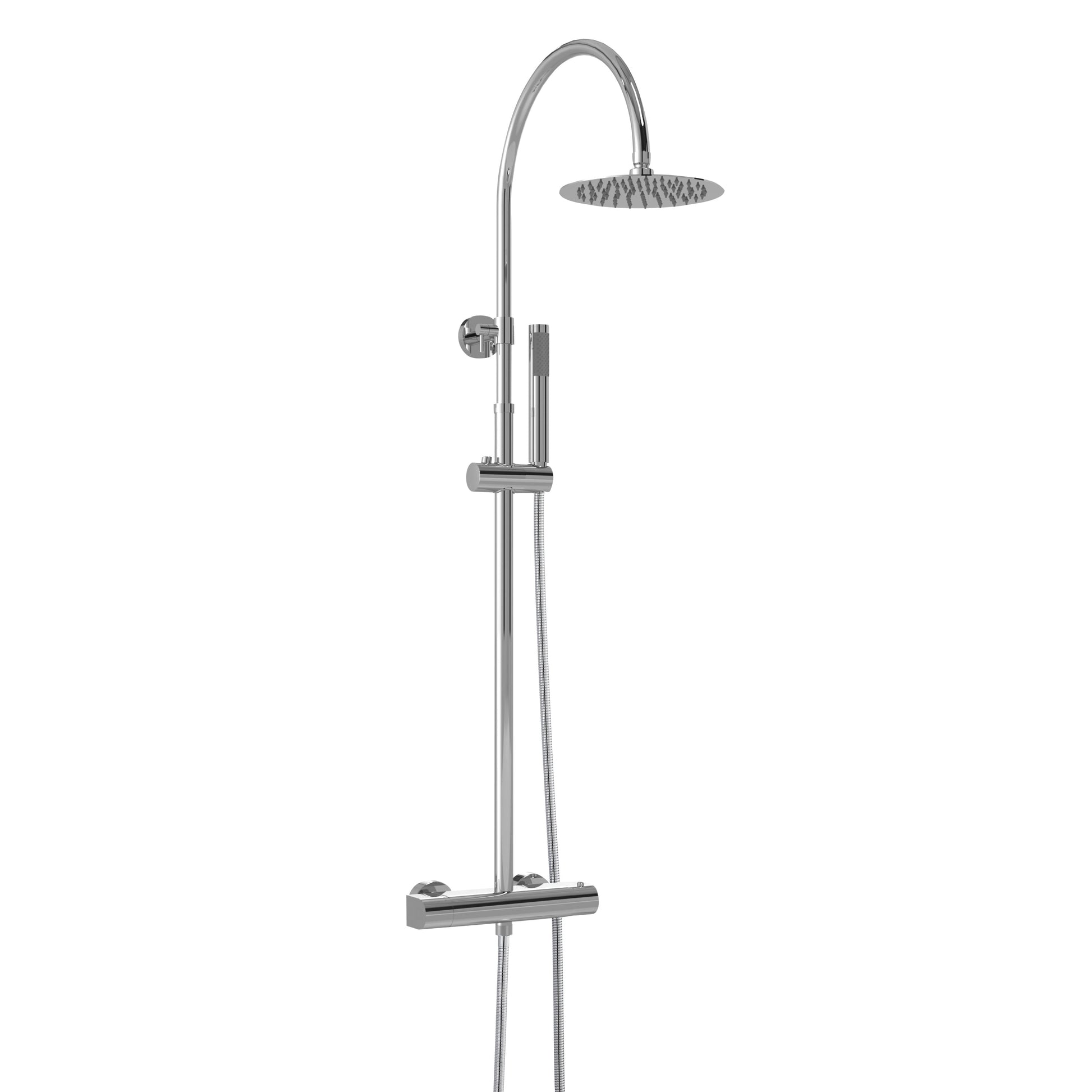

Multi Option Shower Kits Round Brass Thermostatic Bar Valve & Shower Kit

The perfect solution to multi-option showering. Thermostatically controlled. Round shower head. Round handset. Thermostatic control to +/- 2 degrees even if the water pressure fluctuates. In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding. Suitable for high pressure water systems. Suitable for combi-boilers and gravity-fed systems. Suitable for unvented mains pressure systems. Suitable for shower pumps. Manufactured from high quality brass.

Specifications

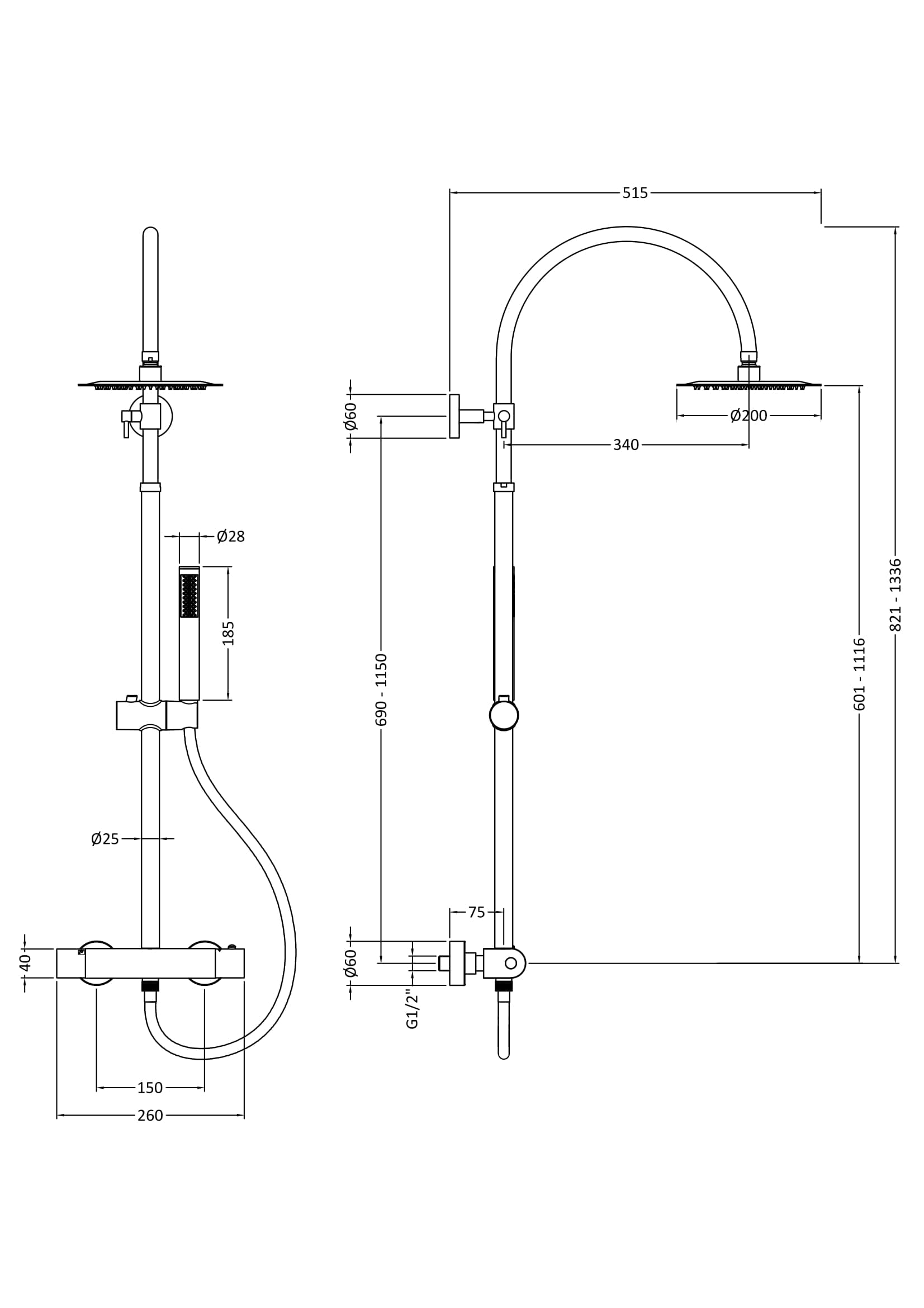

• Dimensions (H × W × D): 1336 × 260 × 415 mm
• Range: Bar Mixer Shower Sets
• Style: Contemporary
• Material: Brass
• Colour/Finish: Chrome
• Guarantee: 20 Years
• Country of Manufacture: China
• Weight: 3.97 kg
• Mount Type: Surface/Wall
• Minimum Operating Pressure: 0.5 Bar
• Valve/Cartridge Type: 1/4 Turn
• WRAS Approved: Yes
• WRAS Approval Number: 2307019
• TMV2 Approved: No
• TMV3 Approved: No
• Flow Rate at 0.5 Bar: 7.5 L/min
• Flow Rate at 1 Bar: 11 L/min
• Flow Rate at 2 Bar: 16.5 L/min
• Flow Rate at 3 Bar: 21 L/min
• Pipe Centres: 150 mm
